Exhaust Pipe Trim for the Rover V8 DAX Rush

by Bob Green

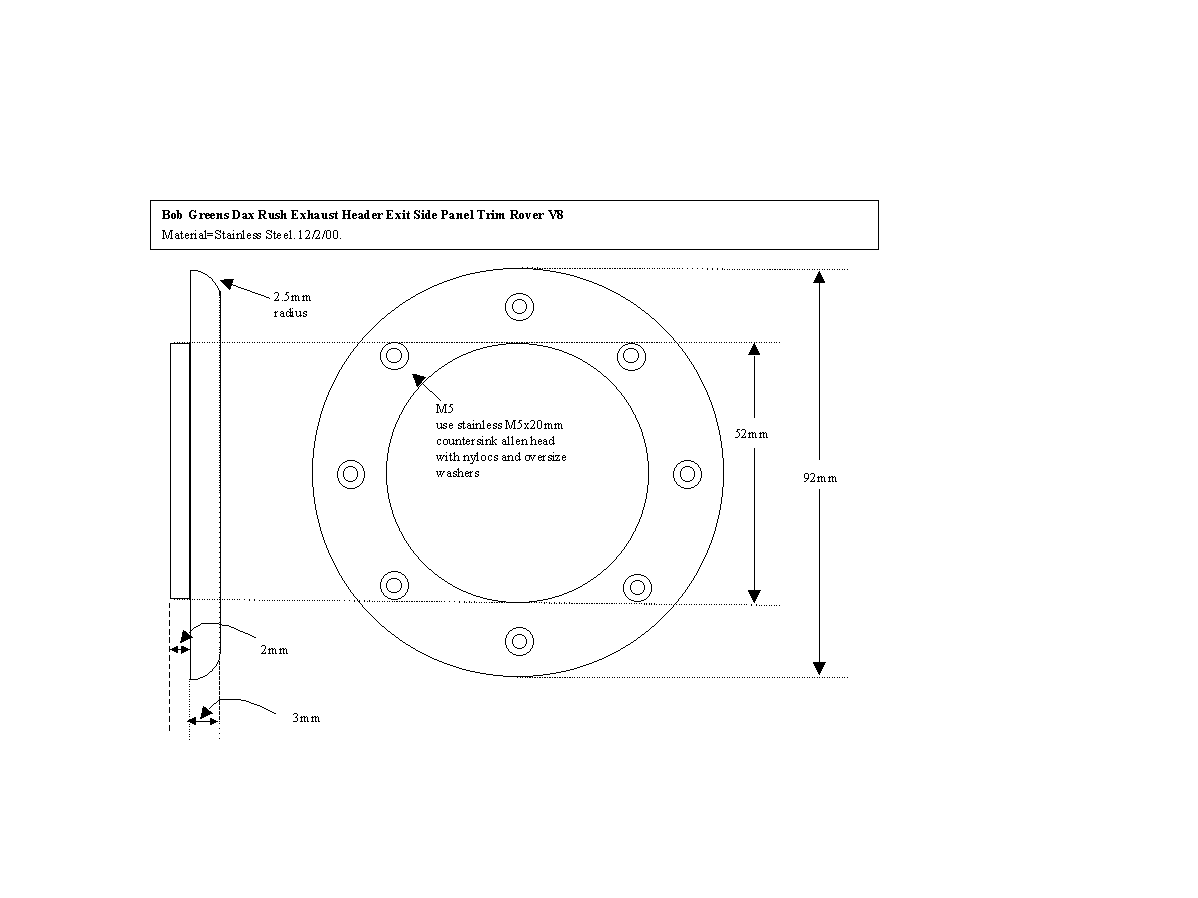

Here is a diagram for a stainless steel trim-ring to tidy up the edges of the hole in the side-panel where an exhaust pipe header passes through. Eight of these are needed for the Rover V8 installation with DAX headers.

Bob says: "It's pretty self explanatory but a note of caution is that the fitting needs to be fairly carefully done or the headers will nick the trims due to the motor twisting due to the torque. So far mine has  been OK - touch wood ..."

Click on the thumbnail to view Bob's engineering diagram of the trim ring.
